In today's industrial environments, floor space and optimizing workflow are critical for profitability. Enter the Column Mounted Jib Crane—a powerful, versatile, and often indispensable solution for precise, localized material handling. This article provides a comprehensive guide to understanding what these cranes are, how they work, their standout benefits, ideal applications, and key components, empowering you to determine if they are the right fit for your operation.
What is a Column Mounted Jib Crane?

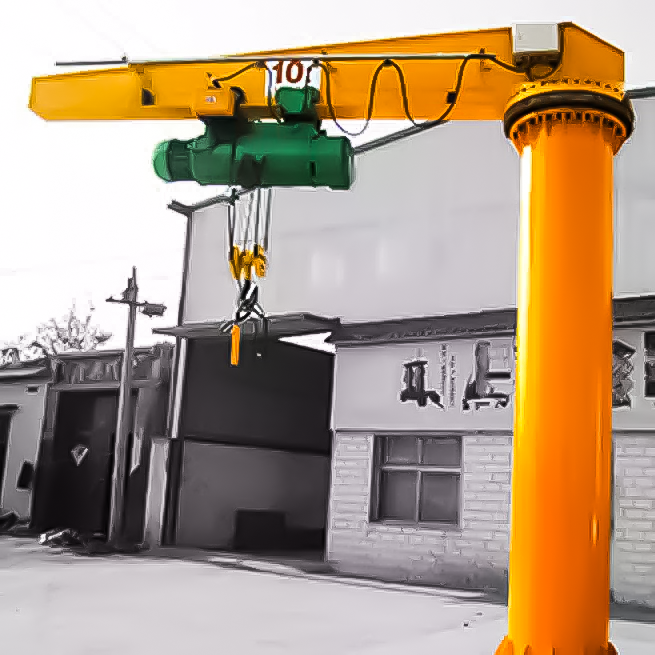

A Column Mounted Jib Crane is a type of freestanding lifting device designed for repetitive material handling within a specific, circular work area. It consists of a vertical column securely anchored to a concrete foundation, supporting a horizontal, pivoting boom (or jib). This simple yet robust design creates a self-contained workstation crane that provides 360 degrees of rotating coverage (or a designed arc), bringing lifting power exactly where it's needed most.
Unlike larger overhead cranes that require extensive runway beams and building support, the column-mounted design is independent and space-efficient. It is a premier solution for handling loads in confined spaces where installing a full overhead system is impractical or cost-prohibitive, offering a perfect blend of strength, flexibility, and economy.
How Does It Work?
The operation of a Column Mounted Jib Crane is elegantly straightforward, centered on mechanical rotation and leverage:
Structural Foundation: The system's stability originates from its floor-mounted column, which is bolted to a engineered concrete foundation. This foundation absorbs all the operational forces—vertical load, moment, and torque.
Rotation & Reach: The horizontal jib arm is attached to the top of the column via a heavy-duty slew bearing. This allows the arm to rotate smoothly, either fully 360° or within a specified arc. An electric or manual hoist and trolley run along the length of the jib boom.
The Lifting Cycle: An operator uses a pendant control or manual effort to:
Position the hoist trolley along the boom to align with the load.
Lower the hook or attachment to secure the load.
Lift the load using the hoist.
Rotate the entire boom to swing the load to its desired destination within the crane's work envelope.
Precisely lower and place the load.
This process creates an efficient circular work zone, eliminating unnecessary horizontal transport and streamlining tasks.
Key Advantages and Features
The Column Mounted Jib Crane offers a compelling set of benefits that drive its popularity:
Space & Cost Efficiency: With a minimal single-column footprint, it maximizes usable floor space and avoids the high cost and structural demands of full overhead crane systems. It offers a superior return on investment for light to medium-duty lifting.
Enhanced Ergonomics & Safety: It drastically reduces manual lifting, stooping, and carrying—major causes of workplace injury. Operators can handle heavy or awkward items with control, improving safety and reducing fatigue.
Improved Productivity: By bringing the lifting point to the work, it slashes load/unload and positioning times. Workflow bottlenecks are eliminated, accelerating cycle times and throughput.
Flexibility & Versatility: Available in various capacities (commonly from 250 kg to 5,000 kg+) and reaches (typically 3 to 10 meters), it can be configured with different hoists and attachments (forks, magnets, vacuums) to suit specific tasks.
Ease of Installation & Relocation: While requiring a proper foundation, its installation is generally simpler and faster than large overhead systems. Some models can also be relocated if facility layouts change.
What Are the Ideal Application Scenarios?
This crane excels in environments requiring frequent, precise lifts within a defined cell or station. Common industrial applications for jib cranes include:

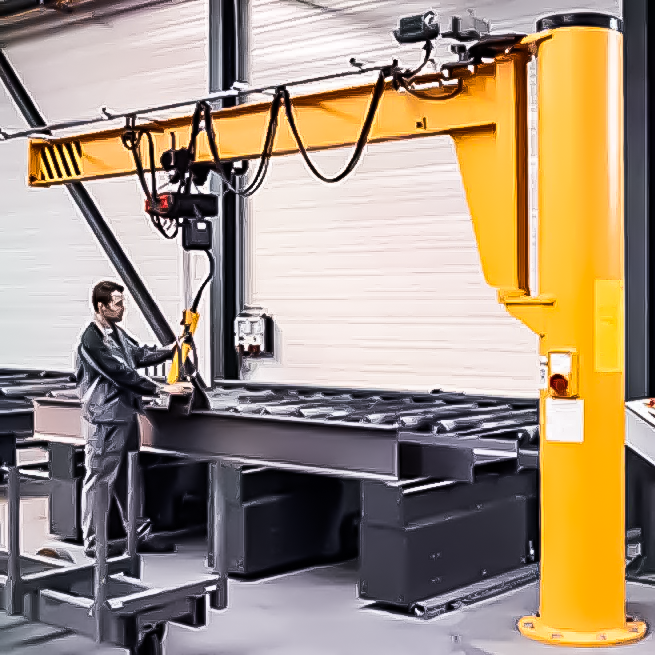

Machining & Fabrication: Loading/unloading raw materials, molds, and finished parts from CNC machines, lathes, and presses.
Assembly Stations: Positioning components (like engines, pumps, or panels) during assembly processes.
Packaging & Loading Bays: Handling bags, drums, or finished goods onto pallets or trucks, especially in areas with overhead door restrictions.
Maintenance & Repair Workshops: Lifting motors, gearboxes, or machinery components for servicing.
Warehousing: Transferring materials from delivery points to carts or initial processing stations.

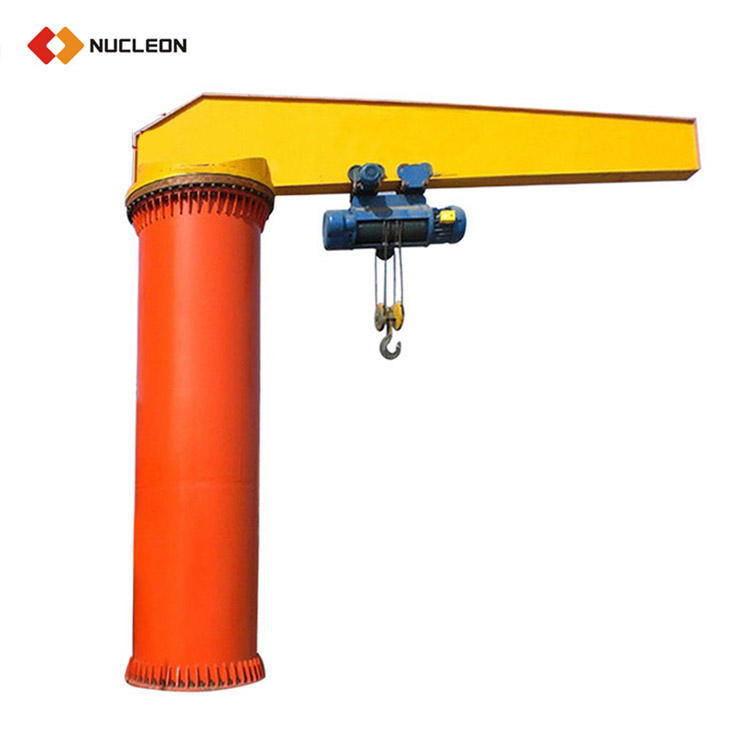

Main Components
A standard Column Mounted Jib Crane is built from several key components, each critical to its function and durability:
Foundation & Column: The structural steel column is the backbone, transferring all loads into a reinforced concrete foundation. Its design ensures stability against tipping and torsion.
Slewing Assembly: Located at the column top, this includes a heavy-duty slewing bearing that enables smooth, low-effort rotation of the boom. It often incorporates a gear drive for electric rotation models.
Jib Boom (Arm): The horizontal reach member, typically an I-beam or enclosed track. Its length defines the working radius. It must be robust to handle the bending moment of the load.
Hoist Trolley: The device that travels along the underside of the jib boom. It can be push-type (manual) or motorized, and it carries the lifting hoist.
Lifting Hoist: The power unit that performs the vertical lift. Options include electric chain hoists (most common), wire rope hoists, or manual hoists, selected based on capacity, speed, and duty cycle.

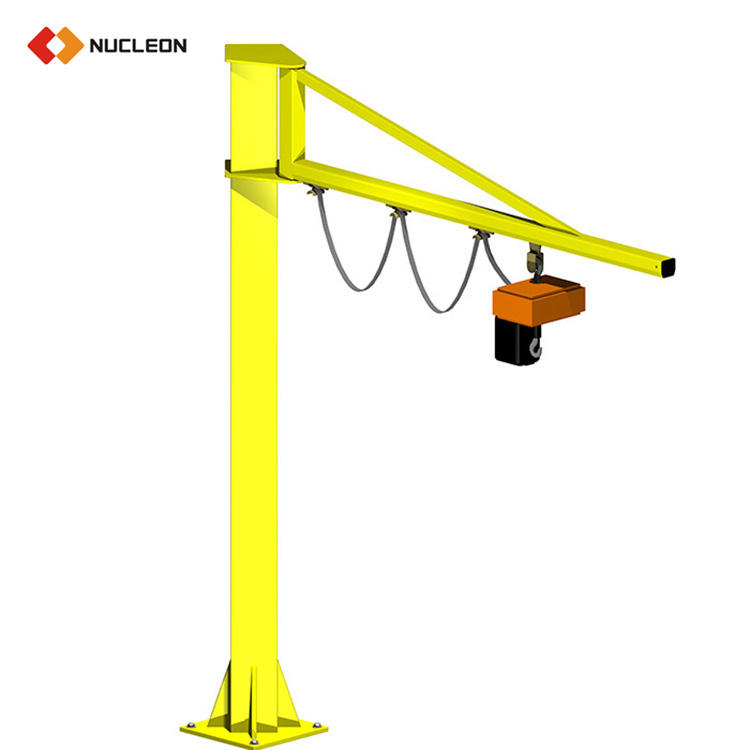

End Stops & Festooning: Safety end stops limit trolley travel. An electrical festoon system manages power cable supply to the hoist and motorized trolley along the rotating boom.
Conclusion
The Column Mounted Jib Crane stands out as a remarkably efficient and targeted solution for modern material handling challenges. By understanding its straightforward operation, significant advantages in space and safety, wide-ranging applications, and robust construction, facility managers and engineers can make an informed decision. For operations seeking to enhance ergonomics, boost productivity in specific work cells, and achieve a fast ROI without a massive infrastructural investment, implementing a well-specified column jib crane is a strategically smart and powerful move.
